LIST PRICE: $249.00
ADR-7170-310-628-00

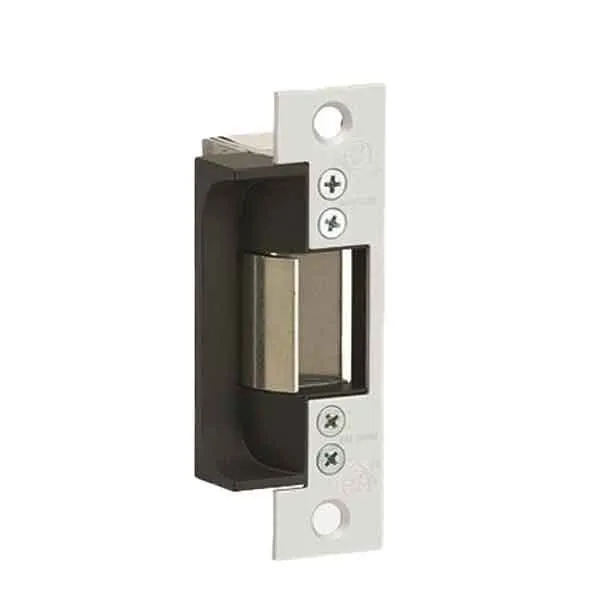

The 7170 Electric Strikes with 4-7/8" [123.8 mm] faceplates are designed for use with mortise or cylindrical type locksets with up to 3/4" [19.1 mm] latchbolt projection without deadbolt. 7170 Electric Strikes are for use in hollow metal or wood applications.

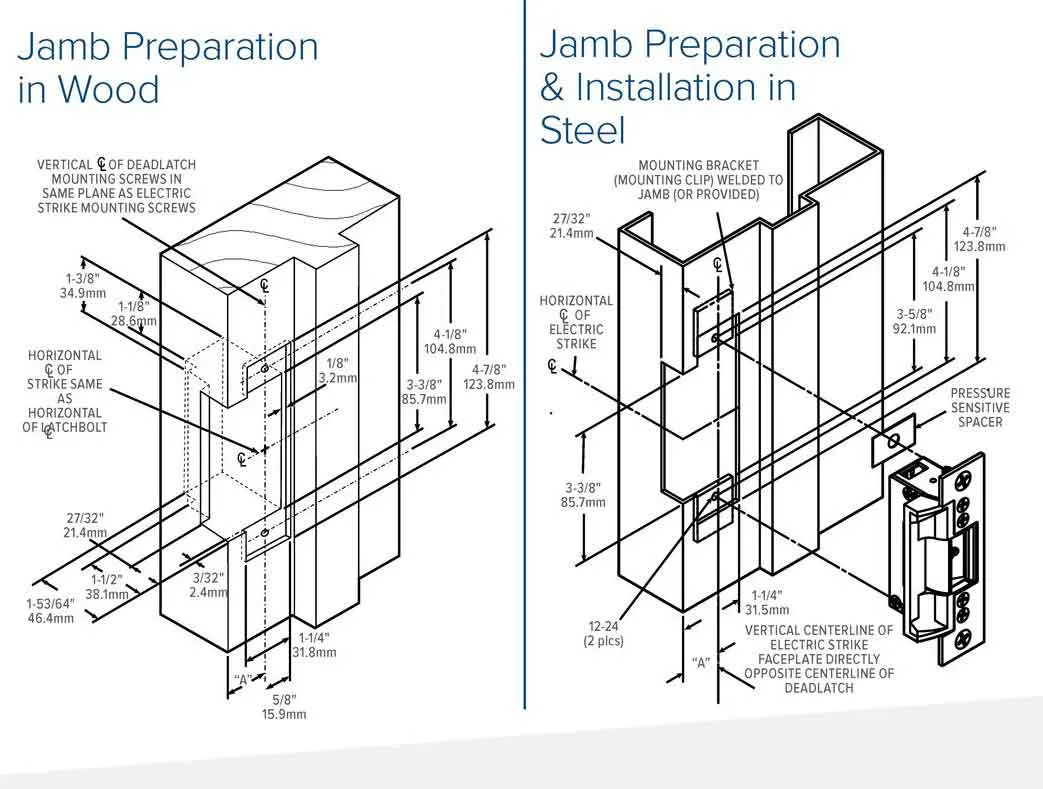

Remote electrical control of narrow stile hollow metal/wood doors (7170) equipped with a mortise or cylindrical lockset with up to 3/4" [19.1 mm] latchbolt projection without deadbolt. Electrical actuation unlocks the keeper, releasing the latchbolt so the door may be opened without operating the latch itself. The electric strike must be positioned to accommodate offset mortise latches during installation.
More Details Below
Features
| Certifications | UL 1034 burglary-resistant listed UL 294 (6th Edition) listed |
| Case |

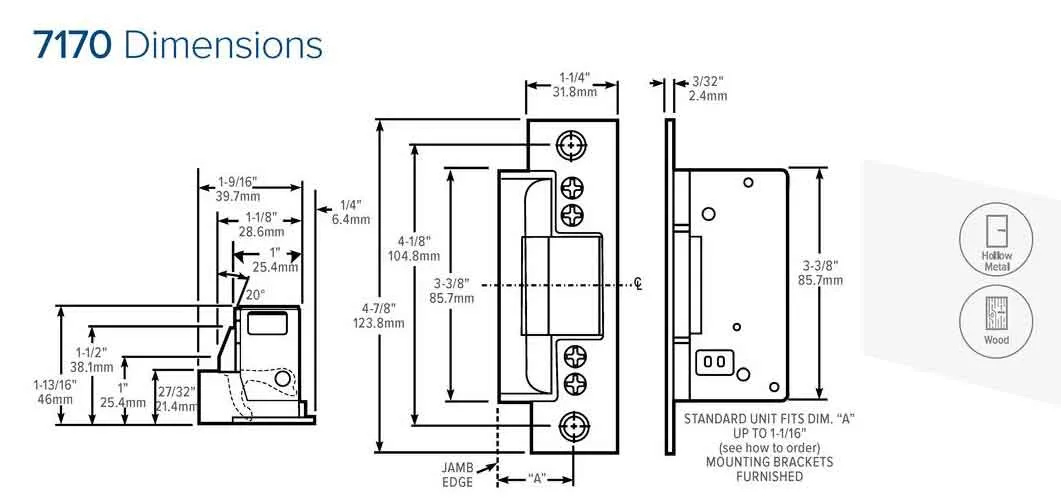

1" x 3-3/8" x 1-7/8" deep [25.4 mm x 85.7 mm x 47.6 mm]. |
| Strike Opening | 5/8" x 1-7/16" x 5/8" deep [15.9 mm x 36.5 mm x 15.9 mm deep]. |
| Strike Lip |
Basic strike has lip of proper length for 1-3/4" [44.5 mm] thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number |
| Latchbolt Projection | 3/4" [19.1 mm] |
| Faceplate | 1-1/4" x 4-7/8" [31.8 mm x 123.8 mm] Flat with square corners |
| Voltage |
12 Volt DC. DC continuous units are silent, AC
|
| Current Draw | 0.33A at 12 VDC |
| Fail Safe | Fail Secure | Standard Configuration /Fail-Secure - Field selectable at time of installation. |
