LIST PRICE: $$435.00
ADR-7240-510-630-00

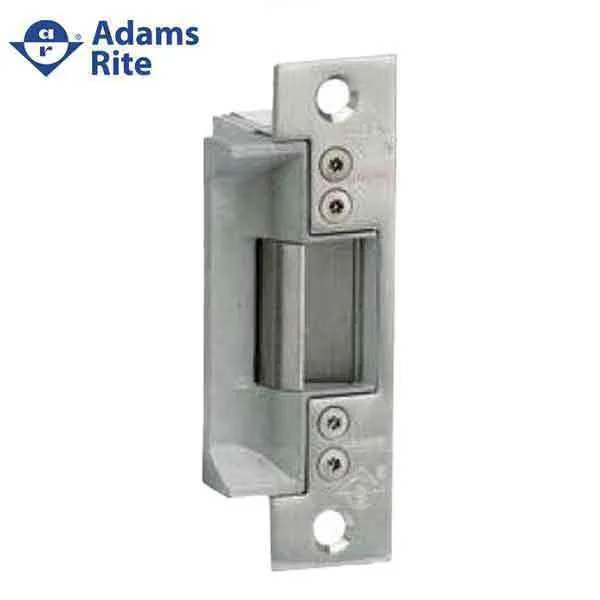

The 7200 Series - Fire Rated Electric Strike designed for cylindrical locksets with
up to 5/8" [15.9 mm] latchbolt projection.
For use in hollow metal door applications.
Remote electrical control of hollow metal doors equipped with cylindrical locksets with up to 5/8" [15.9 mm] latchbolt projection. Electrical actuation unlocks the keeper, releasing the latchbolt so the door may be opened without operating the latch itself. Fire-rated in fail secure mode only.
More Details Below
Features
| Certifications | UL 10C fire rated, 3 hour single door (fail secure only) CAN/ULC-S104 fire door conformant |
| Case |
1" x 3-3/8" x 1-5/8" deep [25.4 mm x 85.7 mm x 41.3 mm deep] |
| Strike Opening |
5/8" x 1-7/16" x 9/16" deep [15.9 mm x 36.5 mm x 14.3 mm deep] Bolt retaining keeper and strike lip are stainless steel. Strike accepts bolts from a variety of locksets. |
| Strike Lip |
Basic strike has lip of proper length for 1-3/4" [44.5 mm] thick door that closes flush with jamb edge. |
| Latchbolt Projection | 5/8" [15.9 mm] |
| Faceplate | 1-1/4" x 4-7/8" [31.8 mm x 123.8 mm]; flat with square corners |
| Voltage |
24 Volt DC |
| Current Draw | 0.17A at 24 VDC |
| Fail Safe | Fail Secure | Assembled for fail-secure (locked when unpowered) operation. |
