ALL-ETPDNS

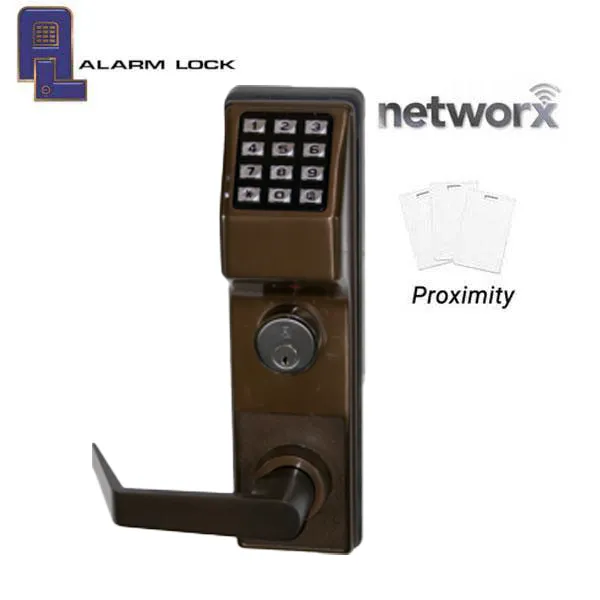

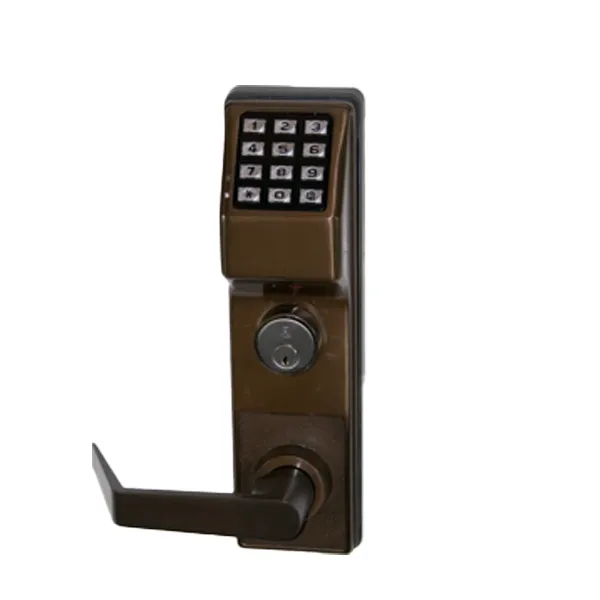

The Alarm lock Trilogy ALL-ETPDNS is a standalone and new wireless networking trilogy network access lock, featuring global lockdown in seconds. All Trilogy's feature the same rugged dependability, and tool-free keypad programming, with cylindrical models, boasting, and are certified to Grade 1 BHMA. It is a cost effectively and add dependable wireless access control a door at a time with a field-proven access solution and with a consistent model for every door type in a facility.
NOTE: This trim is configured to work with
Features:
- Installable in minutes
- Grade 1 durable, vandal-resistant, indoor/outdoor models
- Bar Length, 36 in.
- Generic rim cylinder & adapter kit included
SPECIFICATIONS:
| Lock Type | For use with exit device - Von Duprin 99 Exit Device |
| User Codes | 5,000 |
| Code Length | 3 to 6 Digits |
| Event Audit Trail | 40,000 |
| Reader/Credential Support |
HID Prox |
| Event Scheduling | 500, Automated Unlock/Lock |
| Lockdown (Privacy) | Global lockdown via lock, server or optional keyfob |
| Door Handing | Non Handed - Reversible |
| Door Stile Width | Minimum 5 in. |
| Environmental | Weatherproof |
| Dimensions | 11.25 (H) x 3 (W) x 3.5 (D) in. |
| Bar Length | 36 in. |
| Door Thickness Minimum | 1 3/4 in. |
| Door Thickness Maximum | 1 7/8 in. |
| Battery Type | C cell |
| Battery Life | 5 Years |
| Outside Operating Temperature Range | -31 to 151F (-35 to 66C) |
| Manufacturer | Alarm Lock |
| Brand | Trilogy, Trilogy Networx |
| Lock Features | Audit Trail, Passage Mode, Privacy/Lockdown, Remote Control, Scheduling |
| Handle Type | Lever Handle Door Locks - Straight Handle |
| Locking Device | Panic/Exit, Exit – Rim |
| Door Opening | Standard |
| Access Type | Keypad – Digits |
| ANSI Rating | Grade 1 (Best) |
| Wireless Protocol | 900MHz |
| Warranty | 2 Year Manufacturer |
