Product Details
＋

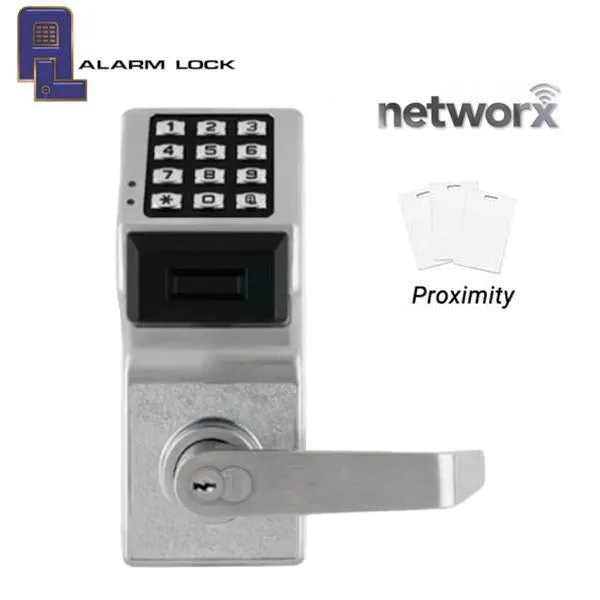

Trilogy Networx locks offer a smarter, simpler way to control access to your entire facility. These wireless access control locks, featuring interchangeable cores for added key management flexibility, eliminate the need for complicated wiring and bulky access panels. They communicate securely via Ethernet or Wi-Fi with a central Gateway, providing features like automatic schedules, detailed audit trails, and support for up to 2,000 doors and 5,000 existing key cards. Trilogy Networx locks offer a cost-effective and user-friendly solution for businesses of all sizes. Trilogy locks offer a cost-effective and user-friendly solution for businesses of all sizes.
- Wireless programming requires DL-Windows software (FREE download at Alarmlock.com website) and Networx Gateway (sold separately)
SPECIFICATIONS
| Lock Function | Entrance PROX network Digital Lock w/ wireless & ethernet feature, as well as door position switch/request to exit. |
| Operation | The clutch mechanism permits turning the lever without retracting the latch and reduces stress on lock bodies and sprindle. Outside lever free turning in the locked position. Entering access code, key bypass, or remote bypass will allow the lever to retract the latch, inside lever always instant egress. |
| Door Thickness | 1 5/8" to 1 7/8" |
| Keypad | All metal, 12 buttons programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability, allowable entry time from 5 to 20 seconds. 4 different keypad tones and keypad may be silenced |
| Users | Up to 5,000 3-5 digit codes. Master, managers, basic users, 500 scheduled events and 35,000 event audit log. |
| Standard key override cylinders | Solid brass, 6-pin tumbler cylinder pinned 5, SC1 keyway, furnished in all locks. Additional tailpieces included HW580 fits Schlage, Corbin/Russwin CL, Sargent 480 series, ASSA65-611. Model HW620 fits Ilco and Lori cylinders |
| Latchbolt | UL listed, fire-rated, 3 hours, 1/2" throw, solid brass, deadlocking. Reversible. Adjustable front for flat or beveled doors. |
| Strike | 1 1/8" x 2 3/4" T strike & 1 1/4" x 4 7/8" ASA strike included. With screws for wood or metal jambs |
| Handing | Non-handed |
| Finishes | US26D satin chrome |
| Power | 4 C cell batteries supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive motor |
| Door Prep | Standard ANSII A115 Series prep, modified by adding additional through-boltholes |
| Compliances | Grade 1, heavy duty cylindrical lockset, UL listed and FCC certified, ADA compliant leversets |
| Cores | Interchangeable cores prep 6-7 pin |
