Product Details
＋

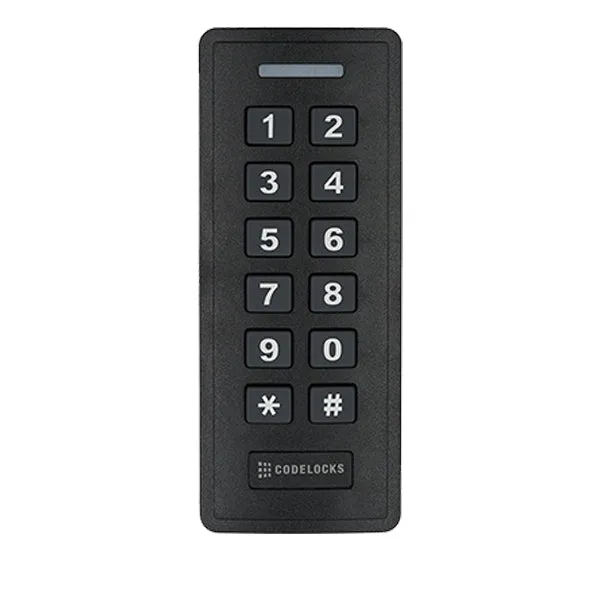

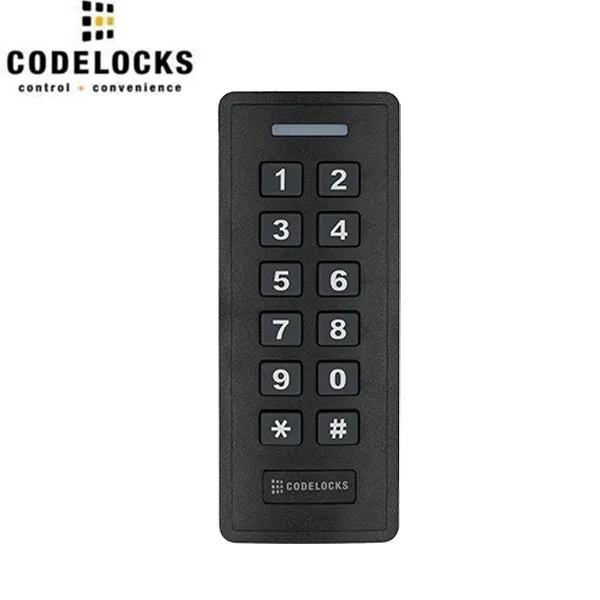

The A3 Dual MIFARE compatible door controller provides a compact, affordable proximity access control system allowing flexible entry for up to 600 users, including two Panic Clients.
Many smaller business buildings are still secured by traditional lock and key, meaning doors can be left unlocked all day leaving them open to possibilities of unauthorized persons gaining access, as well as keys going missing. The A3 Dual door controller offers you a keyless solution as a standalone product; an affordable access control system that does not require complex software purchases, external programmers or licensing costs.
Features:
- 13.56MHz MIFARE compatible (ISO 14443 Type A) & 125KHz
- Configurable penalty time
- Anti-tamper sensor
- LED status indicators
- Surface mount
- Alarm connection
- Conforms to IP66 rating
Specifications:
| Brand |
Access by Codelocks |
| Buttons | 2 x 6 |
| Clients - Smart Cards | Up to 600 |
| IP Rating |
IP66 |
| Keypad | 12 individual buttons |
| Finish |
Black |
| Material |
Zinc Alloy |
| Lock Dimensions | 2" x 4 1⁄16" x 5⁄8" |
| Orientation |
Vertical |
| Suitable |
Internal, External |
| Supported Cards |
MIFARE® Classic 13.56MHz 14443-3 Type A, MIFARE® DESFire® 13.56MHz ISO/IEC 14443 A 1-4, MIFARE Ultralite® 13.56MHz ISO/IEC 14443 A 1-3 |
| Voltage | 12-18V DC |
| Idle Current | 35mA |
| Working Current | 100mA |
| Inputs/Outputs | Relay, Push-to-Exit, Alarm, Door Contact, Wiegand Input, Wiegand Output |
| Wiegand | Input/Output: 26-37 bits PIN Output: 4 bits, 8 bits (ASCII), 10 Digits Virtual Number |
| Read Range | 60mm (23 /8”) |
| Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Humidity | 10%RH ~ 98%RH |
| Dimensions | 49.5mm x 123mm x 22mm (2” x 47 /8” x 7 /8”) |
| User Levels | Master, User, Panic |
| User Types |
Card, Code |
