The outside lever turns freely without operating the latchbolt. When a valid code is entered and the blue LED lights, the lever will retract the latchbolt. When the door closes the spring latch will automatically lock the door. The key will open the door for management functions. The key may be used to set the lock into Code Free mode so that anyone can open the door without using a code. Code Free Mode can also be programmed at the keypad using the Master Code.
Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters / outdoor spaces. Gate Box Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards - any restricted area that will benefit from controlling access, commercial or residential
Features
- Mortise Latch
- Lever and knob handles available
- Over 200,000 operations from 4 x AA cells (supplied)
- Tamper time out and low battery warning
- Connections for remote release
- Alarm release included
- Internal and external applications
- Easy, effective gate and fence installation
- Complete kits with all required components
- 14-gauge weldable steel boxes with pre-drilled fixing holes
- Supplied as raw steel, ready to paint
- Adjustable strike bracket with U-bolt fastener
- Suited for residential, commercial and non-commercial

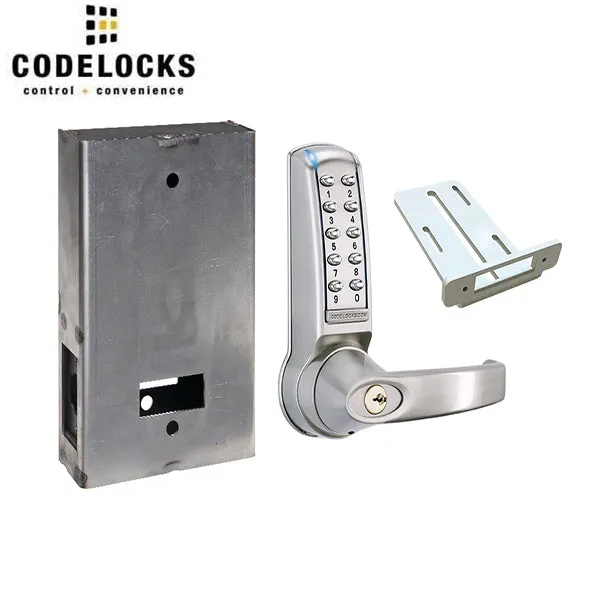

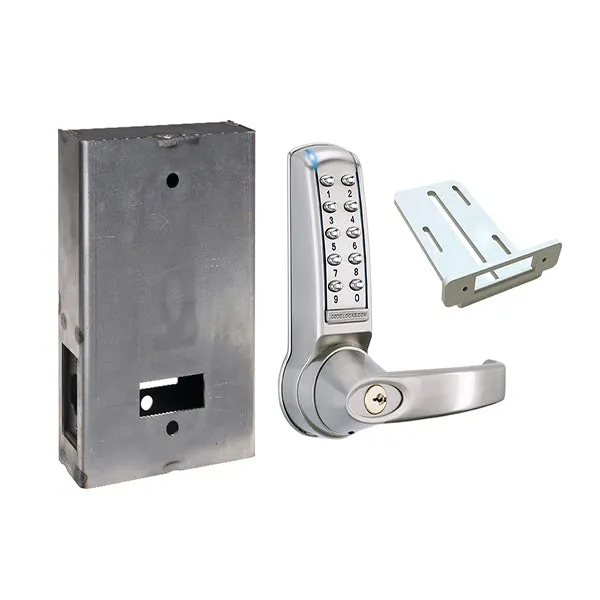

Gate Box Kit Components
- CL4210 Electronic Tubular Latchbolt
- Codelocks installation, operating/programming instructions, fastening bolts and latch
- 14-gauge steel weldable Gate Box, pre-drilled for the specified Codelock
- 16-gauge steel, adjustable latch bracket
Specifications
| Brand | Codelocks |
| Gate Box Dimensions | 8.5" (H) x 5.5" (W) x 1.75" (D) |
| Gate Box Material | 14-gauge steel |
| Buttons | 2 x 5 Programming |
| Code Change Method | Keypad (On Door) |
| Codes | User Codes 4, 5 or 6 digits long |
| Door Thickness | 1 3⁄8" - 2 3⁄8" (35mm - 60mm) |
| Finish | Brushed Steel |
| Handed | Non-Handed - Locks will fit doors hung on the left or right |
| Keypad | 10 Individual stainless steel buttons |
| Latch Type | Mortise Latch |
| Lock Material | Zinc Alloy |
| Low Battery Warning | Red LED will flash on opening to indicate low battery |
| Memory | Stores up to 80 User Codes |
| Operations | Up to 200,000 per set of 4 x AA batteries |
| Orientation | Vertical |
| Power | 4x AA |
| Spindle | Two part 5⁄16" (8mm) spring loaded spindle |
| Suitable For | Internal, External |
| User Types | Code |
