Product Details
＋

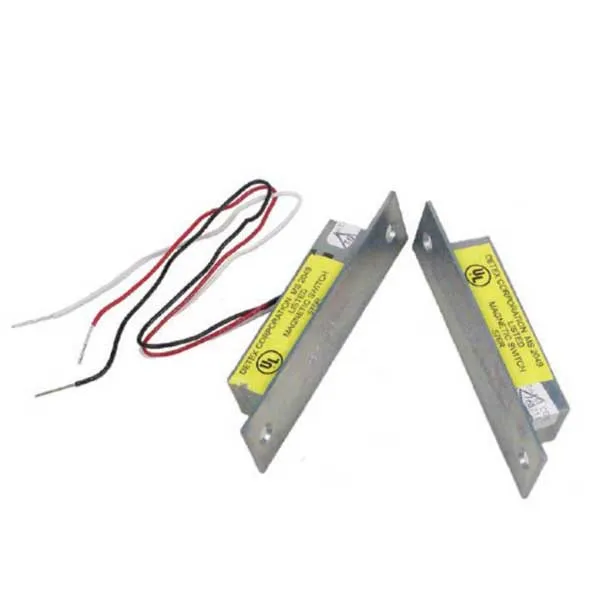

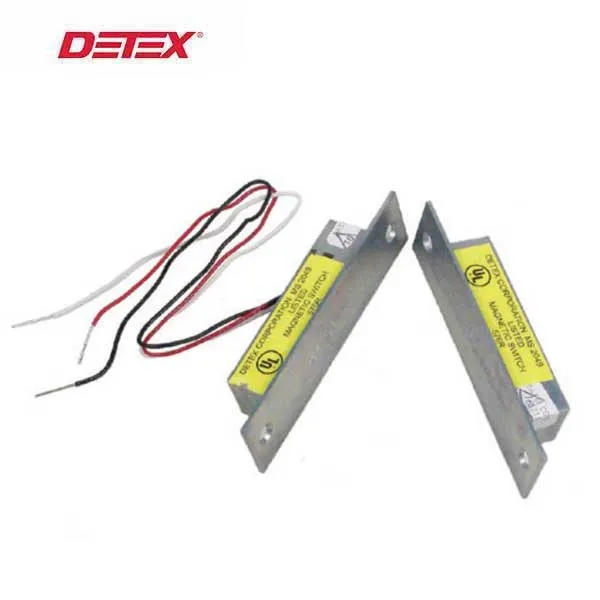

The DTX-MS-1039F is a magnetic switch that is designed primarily to serve as sensing devices to detect the opening of a door or window; to assure that a protected door is securely under surveillance; to serve as a trigger for a wall-mounted Detex Exit Alarm; to signal that a door has been inadvertently left open, and to be used as a direct switch to set off many kinds of audio and visual alarms.
- Tamper protection - mounting screws inaccessible when the door is closed
- Components potted to protect against shock and moisture
- Easy installation with concealed wiring and color-coded labels
- Wide range of alarm and signal applications
- Minimizes false signals due to loosely closed doors
- Switch rated for over one million operations under load
- Provides assurance that protected doors are under surveillance
- Simple installation
- BMS - Balanced Magnetic Switch provides improved security
Max. Contact Rating |
24VDC @ .5A |
| Door Types | Steel, Aluminum, or Wood Doors And Frames |
| Stiles | May be mounted on stiles as narrow as 1-3/8" |
| Switch | (SPDT) - Single Pole, Double Throw |
| Application | Serves as a trigger for alarms or remote monitors |
| Wiring Leads | 12" long, color-coded, and concealed |
| Device | House the switch contact in the door frame and the magnet mortised in the edge of the door |
