Product Details
＋
Description
Fiber Optic Stripper, Three Hole

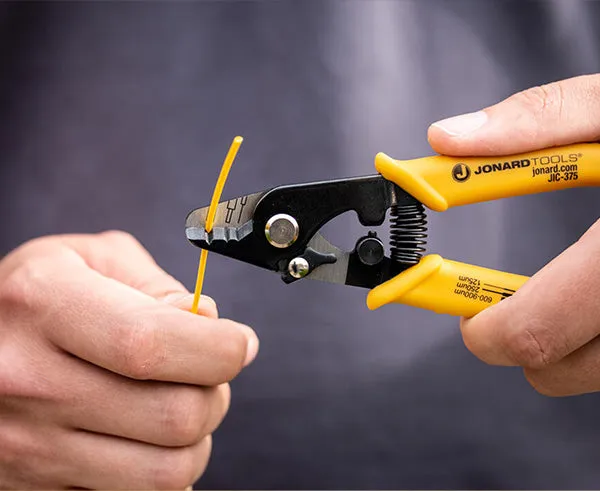

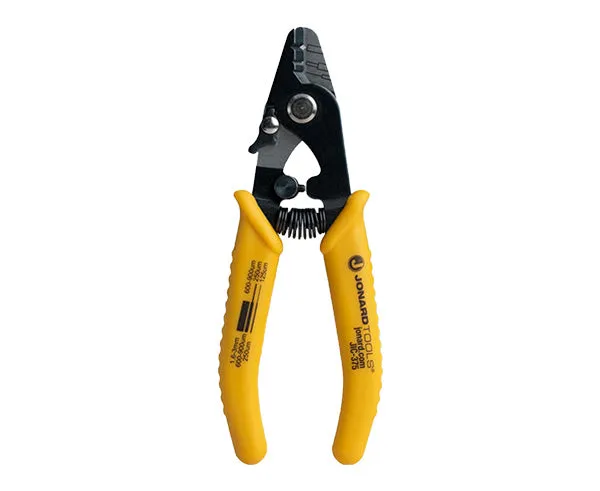

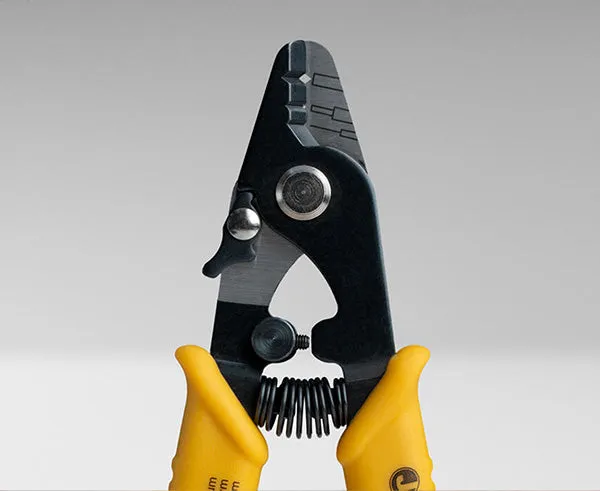

The Jonard Tools JIC-375 Three Hole Fiber Optic Stripper performs all common fiber stripping functions.
Features
Features

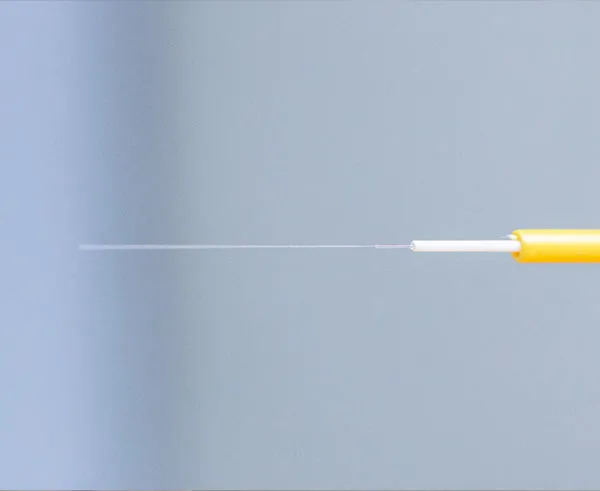

- Strips the 1.6 mm-3.0 mm fiber cable jacket, 600-900 micron buffer coating, and 250 micron acrylate coating to expose the 125 micron glass fiber

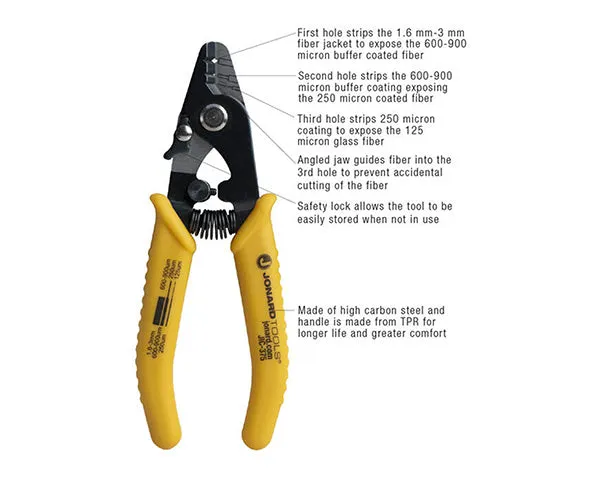

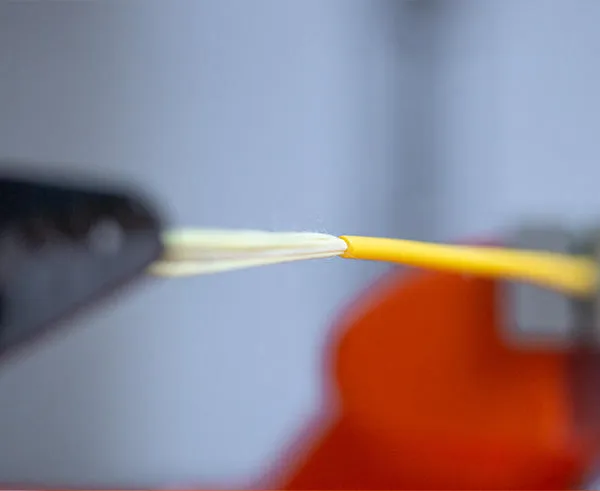

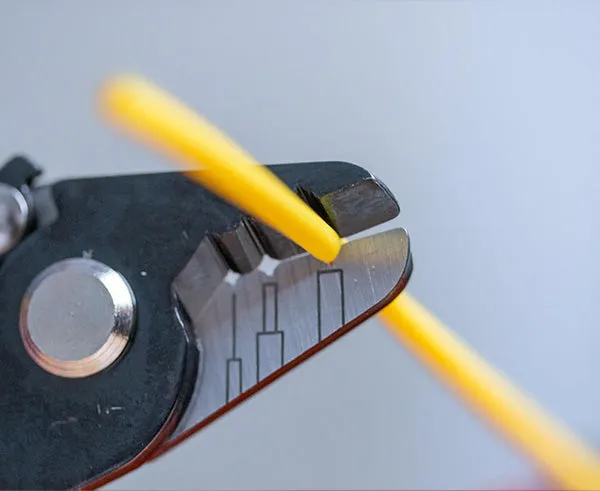

- First hole strips the 1.6 mm-3.0 mm jacket exposing the optical fiber and Kevlar strength members

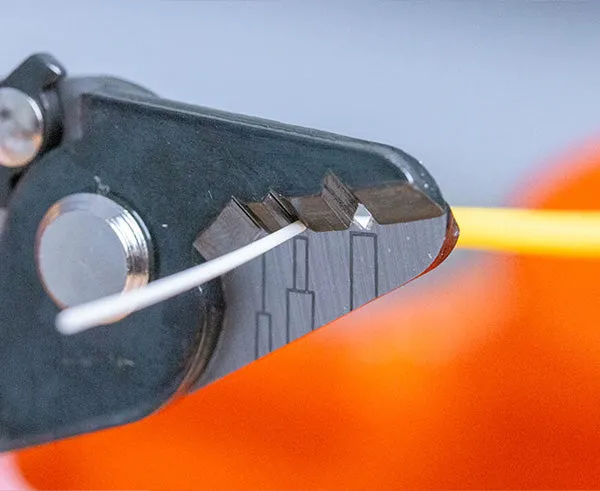

- Second hole strips the buffer coating, exposing the acrylate coating on the optical fiber

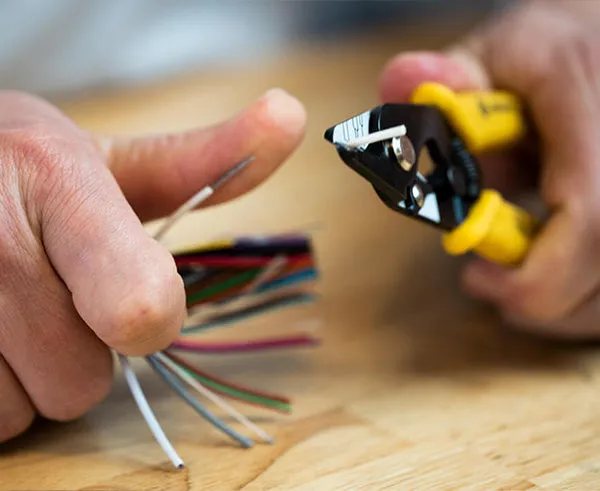

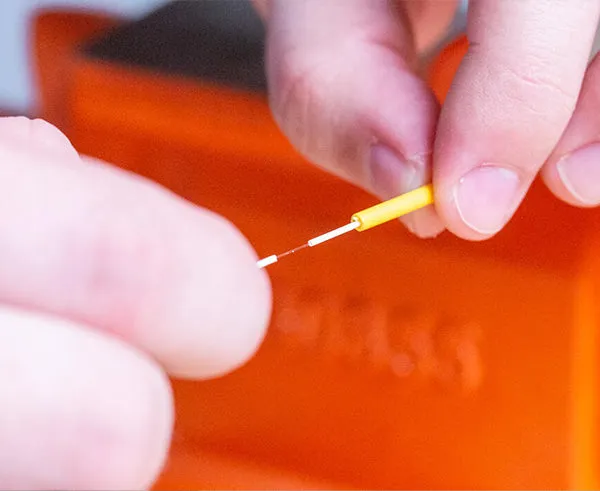

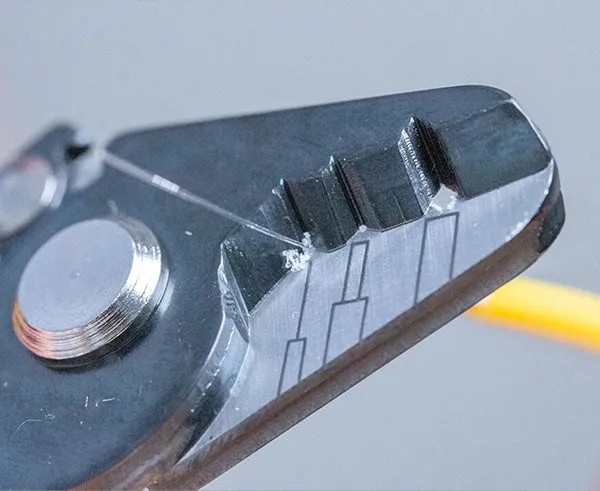

- Third hole strips the acrylate coating exposing the glass fiber without nicking or scratching the fiber

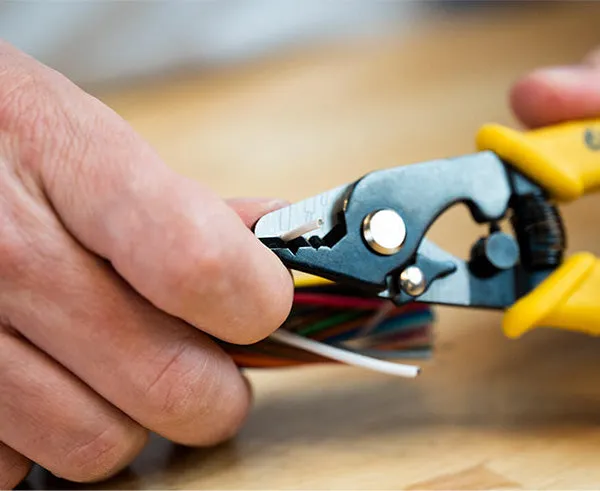

- Angled jaw guides fiber into the 3rd hole to prevent accidental cutting of the fiber

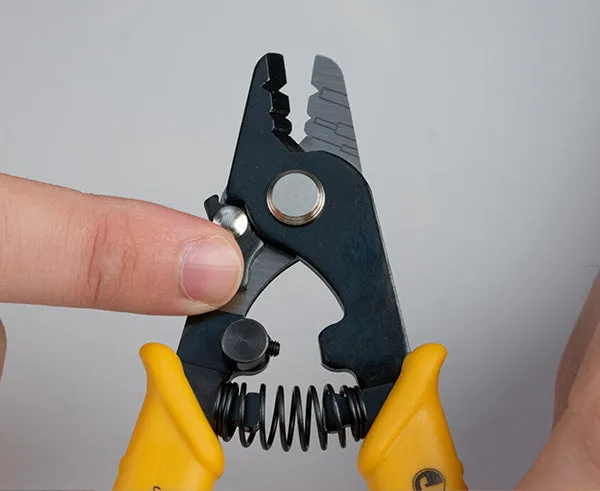

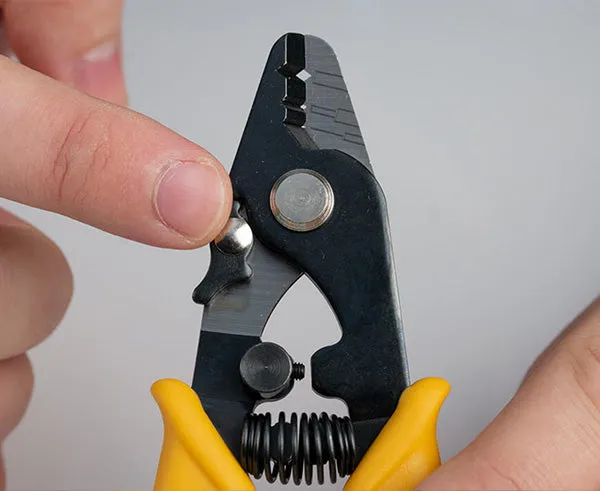

- Safety lock allows the tool to be easily stored when not in use
- Tool is made of strong high carbon steel and handle is made of TPR (thermoplastic rubber) for high durability and greater comfort
Specifications
Specifications
| Cut Type |
Strip |
|---|---|
| Cable Type |
Jacket, Buffer, Fiber Optic |
| Strip Diameter |
250 micron, 600-900 micron, 1.6 mm-3.0 mm |
| Handle Grip Material |
TPR (Thermoplastic Rubber) |
| Handle Color |
Yellow |
| Product Main Color | Yellow |
| Handle Material | TPR (Thermoplastic Rubber) |
| Length | 6(15.24cm) |
| Weight | 0.22 lb (99.88 g) |
| UPC # | 811490010949 |
Additional Information
Additional Information
What’s In The Box
What’s In The Box
- Qty 1 - Fiber Optic Stripper, Three Hole
