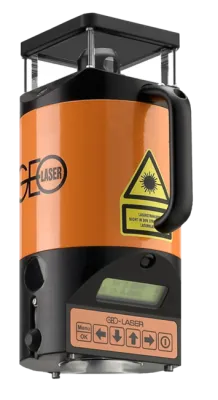

Geo Laser PL-74L Precision Laser
The automatic precision laser PL-74L is an all-around laser for horizontal use capable of electronic self-levelling over two axes. It emits a laser beam, which turns into a light plane as it rotates.
Geo Laser PL-74L Video
Performance features
Laser class 2, laser power < 1 mW. No special safety precautions necessary. The easy standard laser class.
FEATURES
-
Fully automatic
Automatic levelling and cut-out in case of low battery or jerky movements. -
Automatic function can be switched off
Therefore inclination adjustment by points of reference is possible. -
Illuminated, clearly legible LCD display
Self-explanatory, for on/off, device data, company data, lock function, operating status, battery level and menu. -
Increased safety
Control indicators with blinking warning system for levelling, operating status and low battery. -
Robustes Metallgehäuse
Kunststoff beschichtet, Stickstoff gespült und gefüllt. -
Robust metal housing
Plastic coated, swept and filled with nitrogen, 100 % watertight. -
Special laser beam quality
Diode laser with visible beam, high-powered lens, high life expectancy and low power consumption. -
Lithium ion rechargeable battery
Operation time to 28 hours with one charge. Rechargeable in max. 5 hours without having to take out the battery. -
Uncompromisingly easy
All you have to do is switch on/off. The rest is done by the PL-74L automatically. -
Checking and adjustment
Easily possible at the building site as well. The device does not have to be opened for adjustment.
SPECIFICATIONS
| Laser class | 2, < 1 mW |
|---|---|
| Laser | Diode visible red 635 nm |
| Laser range | from 0.5 m to 100 m. Ø 200 m depending on circumstances and laser receiver |
| Beam diameter at laser | at laser 5 mm |
| Self-levelling range | ± 5 % |
| Permissible deviation | ± 0.025 mm ± 0.024 mm/m |
| Operating time | up to 28 hours |
| External power supply | 11 V DC to 14 V DC with cable 0117.02 |
| Undervoltage cut-out | yes |
| Waterproof | to 3.5 m |
| Temperature range | 0° C to 40° C |
| Weight | 3.4 kg |
| Rotor speed | adjustable in steps from 0 to 800 RPM |
| Adjustment |
possible in the field without having to open the device |
Quality Guarantee
Our lasers are the result of decades of experience in the research, development, and production of construction lasers. The design, the materials used, as well as our rigorous quality assurance process are guarantors of high functionality and a long service life. All our devices are designed and manufactured exclusively in Germany and are renowned worldwide for their perfection in terms of handling, precision, robustness, and quality.
Download the data sheet !
