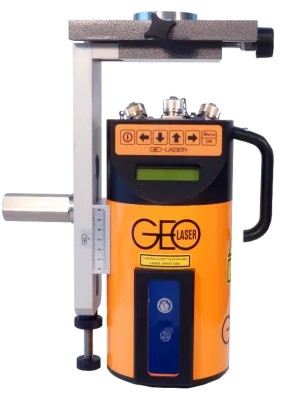

GEO-Laser VL-80 Fully Automatic Drifting Pipe Laser Level

Name: GEO-Laser VL-80 Fully Automatic Drifting Pipe Laser Level
SKU: 553266

PRODUCT OVERVIEW

The VL-80 is an exceptional laser. lt was specifically designed for pipe driving, but can also be used for a variety of other purposes. lt emits an automatically levelled or defined inclined target beam and a second beam for direction locking.

FEATURES

Fully automatic
Automatic levelling, inclination zeroing, direction centring and cut-out in case of low battery or jerky movement.
Advantageus diode laser beam
Low power consumption with high life expectancy. Target beam laser power adjustable in five steps from 1 to < 5 mW for various requirements.
Increased safety
Control indicators with blinking warning system for levelling, low battery and end positions. Shift guard for inclination and direction setting. The values that have been set remain stored in the laser even after switching off or in the case of a low battery. The name of the owner can be saved in the device to protect against theft.
Illuminated, clearly legible LCD display
Self-explanatory, for on/off, device data, company data, lock function, inclination, algebraic sign, unit % or ‰, centring, direction limitation, operating status and menu.
Easy-to-use keyboard
Clear layout, big, user-friendly, self-explanatory keys.
Robust metal housing
Anodised, plastic-coated, filled with nitrogen, 100% watertight.
Flexible power supply

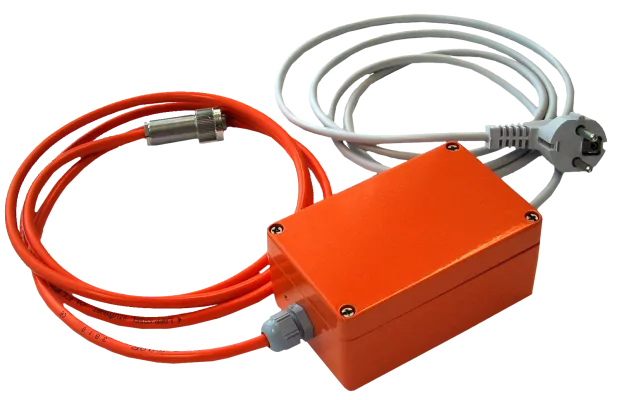

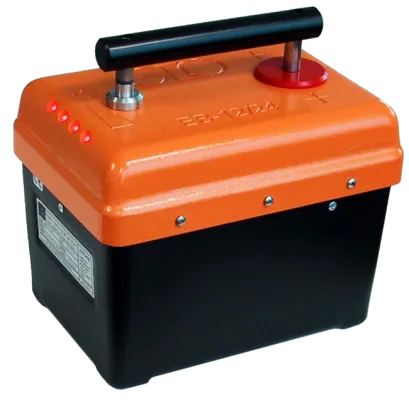

12 V/DC = Energy box EB-12/24 or 12 V rechargeable battery 230 V/AC = Power supply NE-12 or other 12 V/DC power sources
Perfected design
Excellent handling, high functionality and reliable operation.

Quality Guarantee

Our lasers are the result of decades of experience in the research, development, and production of construction lasers. The design, the materials used, as well as our rigorous quality assurance process are guarantors of high functionality and a long service life. All our devices are designed and manufactured exclusively in Germany and are renowned worldwide for their perfection in terms of handling, precision, robustness, and quality.

SPECIFICATIONS

Laser class	Locking beam: class 2, < 1 mW, Target beam: class, < 5 mW,
Laser	Locking beam: rot 635 nm Target beam: rot 658 nm
Laser range	up to 500 m
Beam diameter at laser	Locking beam: at Laser 5 mm, in 15 m ca. 13 mm Target beam: at Laser 13 mm, ca. 5,5 mm per 100 m
Inclination range	Locking beam: - 2,5 % to 110 % (48°), Target beam: - 10 % to 40 %
Reading accuracy	0,001 %
Permissible deviation	± 0,005 %
Direction setting	± 5 % (10 m over 100 m)
External power supply	10 to 13,8 Volt DC/ 0,4 A
Undervoltage cut-out	yes
Waterproof	to 3.5 m
Temperature range	- 20° C to 50° C
Weight	VL-80 3,1 kg PH-80 2,2 kg = 5,3 kg
Guarantee	24 month
Adjustment	possible in the field without having to open the device

Standard equipment:
Transport case, connection cable, rechargeable battery connection,

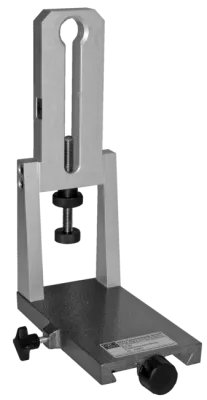

positioning device, remote control VF-80, locking receiver FE-80,
connection cable laser, remote control,
connection cable laser, locking receiver,
5/8” hexagon head cap screw with nut and washer.
