Product Details
＋

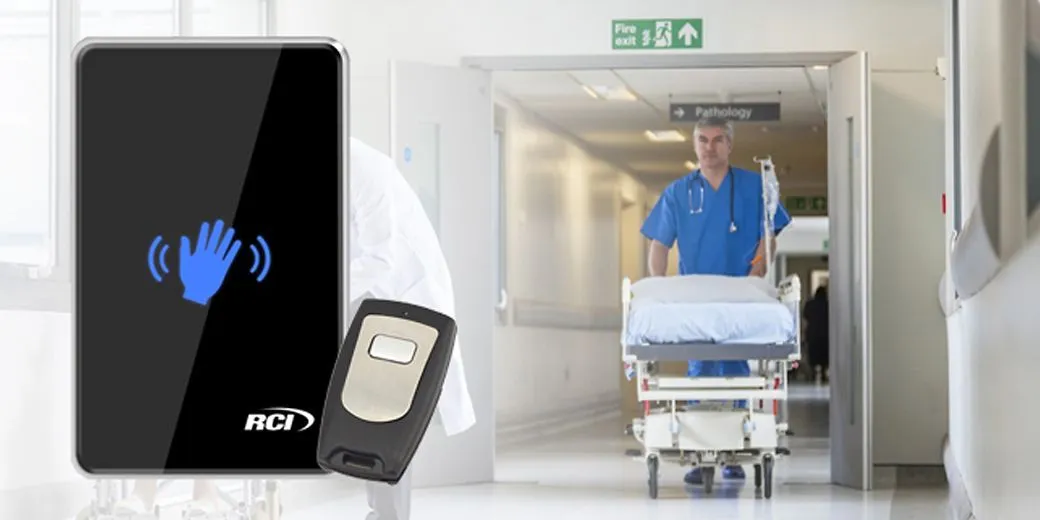

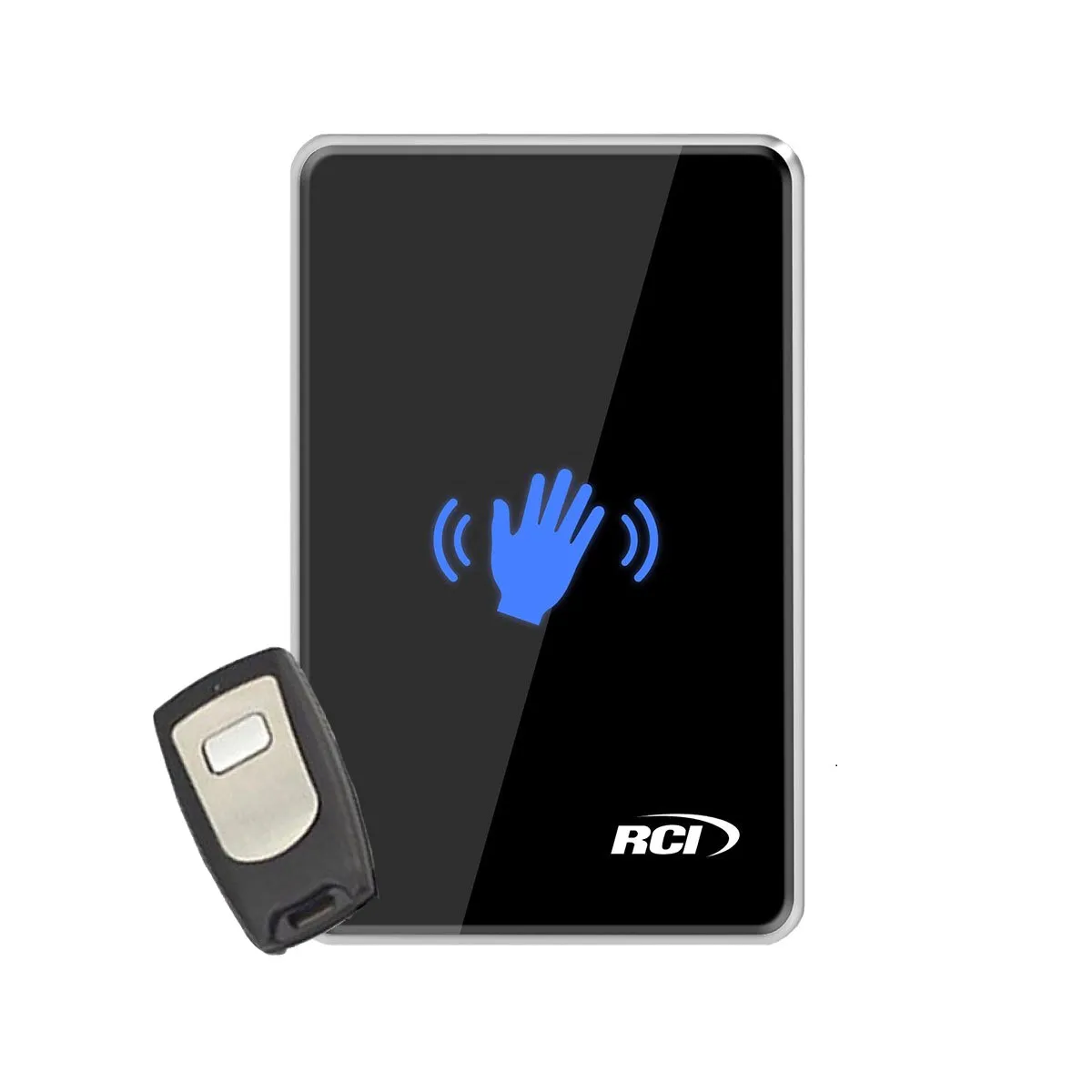

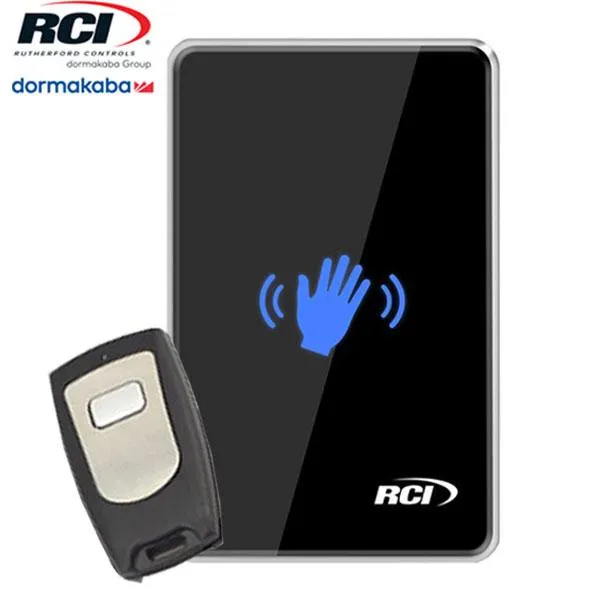

- Unique low-profile touchless actuator plate utilizing capacitive technology for the activation of automatic doors
- Aesthetically pleasing design
- Hands-free – helps reduce the spread of germs and bacteria
- Adjustable detection zone to reduce unwanted activations
- When the device is activated, the indicator light (waving hand) will change colors
- Secondary Normally Open (NO) mechanical switch in the event of a power loss
- Selectable unlock times (1-63 seconds)
- Mounts on the single-gang electrical box
- Available remote control to trigger switch remotely
- May be purchased as a switch ()
- Includes 910TC Switch, 910TC-WRM Remote Receiver Module, and 910TC-WRB Remote Transmitter
- Non-Standalone
- 910TC-WRM - 433MHz Remote Receiver Module
- 910TC-WRB - 433MHz Remote Transmitter
- Commercial centers
- Industrial buildings
- Educational facilities
- Retail outlets
- Health care facilities
- Office complexes
- FCC compliant
- ISED compliant
- Technology Type Capacitive Sensing
- Detection Mode: Proximity
- Voltage12-24VDC
- Current50mA (typical)/ 115mA (activated)
- Temperature Range-4Ā°F to 140Ā°F (-20Ā°C to 60Ā°C)
- Detection ZoneMaximum detection zone of up to 2" (50mm)
- RelayForm C SPDT 24VDC@100mA
