Product Details
＋
Networked Control Panels are Rosslare's most advanced and secure access solutions. Featuring a 2 reader scalable model that supports online and offline operation, they easily scale up to multiple remote premises. Designed for ease of installation, this product provides high secure professional performance in AC215 Systems. Rosslare’s AxTraxNG™ Server for Microsoft Windows to deliver full featured access control and automation capability via 10/100 Ethernet port.
Features:

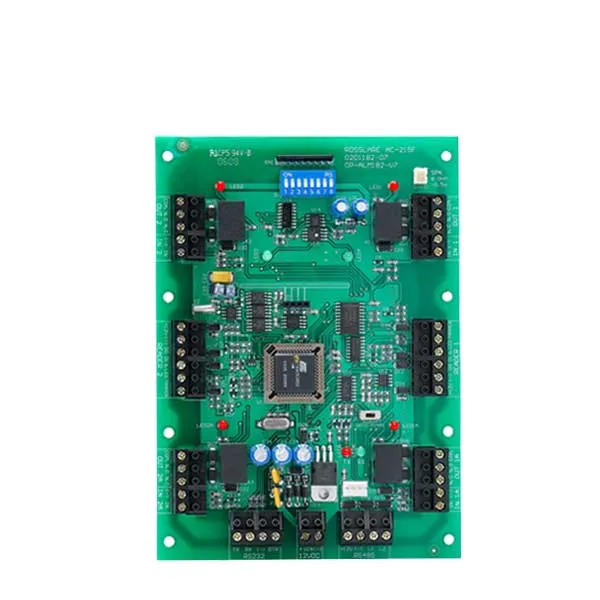

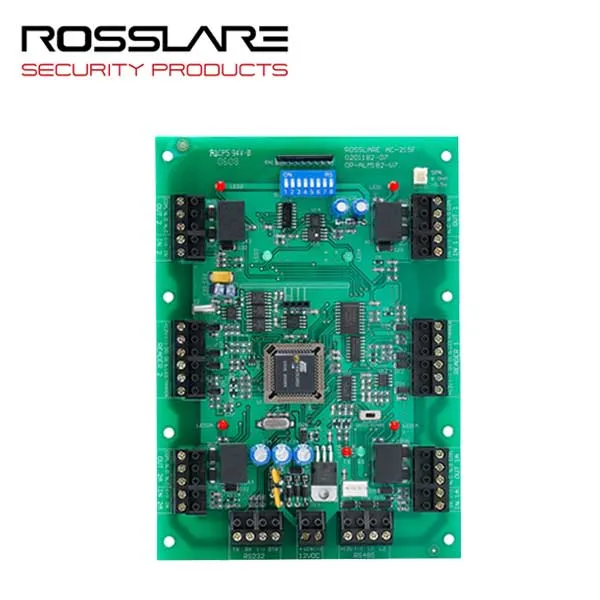

- Printed Circuit Board Assembly (PCBA) Only for AC215
- Networked up to 1023 Panels
- Networked up to 2046 Doors
- Up to 30,000 users with access rights for every panel
- Panel supports 1-door (In/Out) and 2-door (In/Out, In/In or Out/Out) configurations
Specifications:
| Type: | Printed Circuit Board Assembly |
| Readers: | 2 reader ports Output voltage: 12 VDC Max. current: 300 mA LED control output D0/D1, tamper input |
| Inputs: | 4 supervised, hi-impedance, inputs Max. voltage: 5 VDC |
| Outputs: | 4 fully programmable 5 A, N.O. and N.C. relay outputs rated 5A @ 30 VDC |
| Interface: | TCP / IP |
| TCP / IP: | Onboard RJ-45 connector |
| Speed Options: | 9600, 19200, 57600, 115200 bps |
| Serial Ports: | 10/100 Ethernet Port |
| Networking: | Rosslare's AxTraxNG™ Server |
| Users: | 30,000 active credentials (Card & PIN) |
| Event Log: | 20,000 Events |
| Operating Voltage: | 12 VDC 1.5 A from PS-14 |
| Max Input Current: | Standby: 120 mA. Maximum: 370 mA |
| Housing: | Printed Circuit Board Assembly Only |
| Standard Approvals: | CE – Safety, ENC, RFI, LVD RED 2104/53/EU; FCC – CFR47 Part 15b |
| Warranty: | 2-Year Limited |
