Product Details
＋

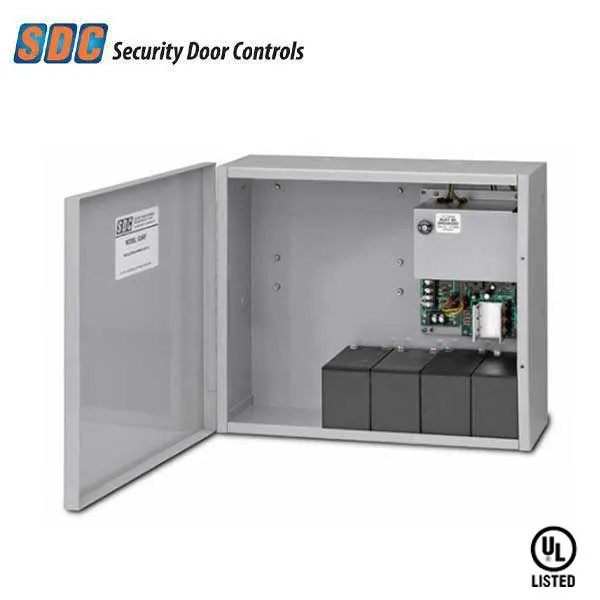

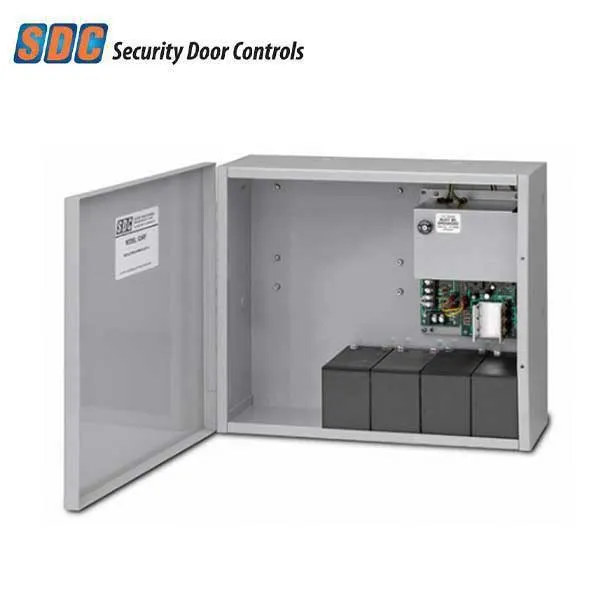

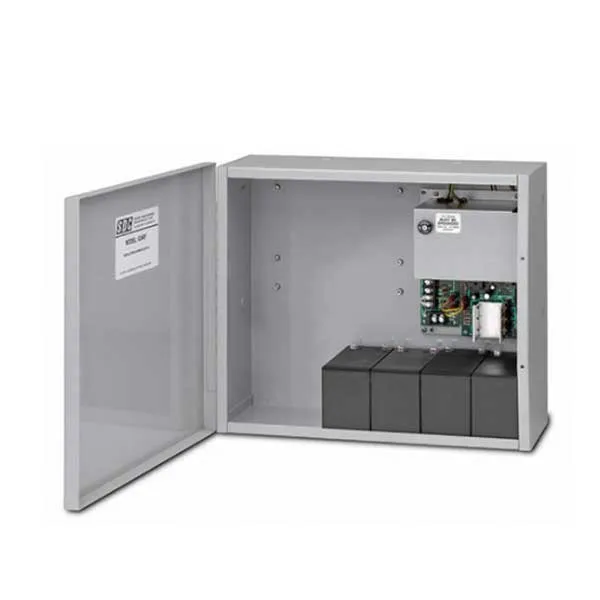

The SDC 634RF Power Supplies have been developed specifically to support electric locks and access controls. The high performance, heavy-duty 4 Amp circuitry is ideal for inductive loads and multi-door applications. The modular design is built around several different application control modules to meet your specific needs for virtually any electric lock system. Documentation is provided to ensure a well organized installation for individual or multi-door systems that may include locking devices, access controls, station controls and consoles for remote control, annunciation and auxiliary emergency release interface.
Features:
- Field selectable 12 or 24VDC, regulated and filtered
- Modular design
- Fire/Emergency release input
- Field selectable manual reset input
- Auto resetting output circuit protection
- Isolated 13.5/27VDC battery charger
- Isolated Charging Circuit
- Low battery disconnect
- Emergency release input
- Field selectable UBC & California compliant manual power up
- Input, output and battery status LED's
- 16” W x 14” H x 6.5” D enclosure
- Choice of output and door control modules
Specifications:
| Construction: | Solid Stainless Steel |
| Model: | 4 Amp, field select one 4 Amp output, or two 2 Amp class 2 outputs. 16 Gauge Steel |
| Output Voltage: | 12/24VDC (Regulated) |
| Input Voltage: | 115 VAC @ 60hz |
| Input Protection: | 1 Amp, Manually Resettable Circuit Breaker |
| Input Current: | 1.2 amps Max. |
| Output Current: | 4 amps |
| Battery Charger: | 500 mA @ 13.5 or 27VDC |
| Batter Charger Protection: | Auto Resetting Poly Fuse per Output |
| Cabinet Dimensions: | 16” W x 14” H x 6.5” D |
| Certifications: | UL Listed, UL 294 |
| Warranty: | 5-Year Manufacturer Warranty |
